32GB Intel Xeon E3-1230v3 Supermicro LGA 1150 micro-ATX Server Board Bundle Kit

Mainboar Supermicro X10SLL-F (MBD-X10SLL-F)
Rev. 1.02
Form Factor
• microATX
• 9.6" x 9.6" (24.38cm x 24.38cm)
Chipset • Intel® C222 Express PCH
CPU Intel Xeon E3-1230v3
3.3GHz (3.7GHz Turbo)
4 Cores / 8 Threads
Heatsink passive 1U heatsink

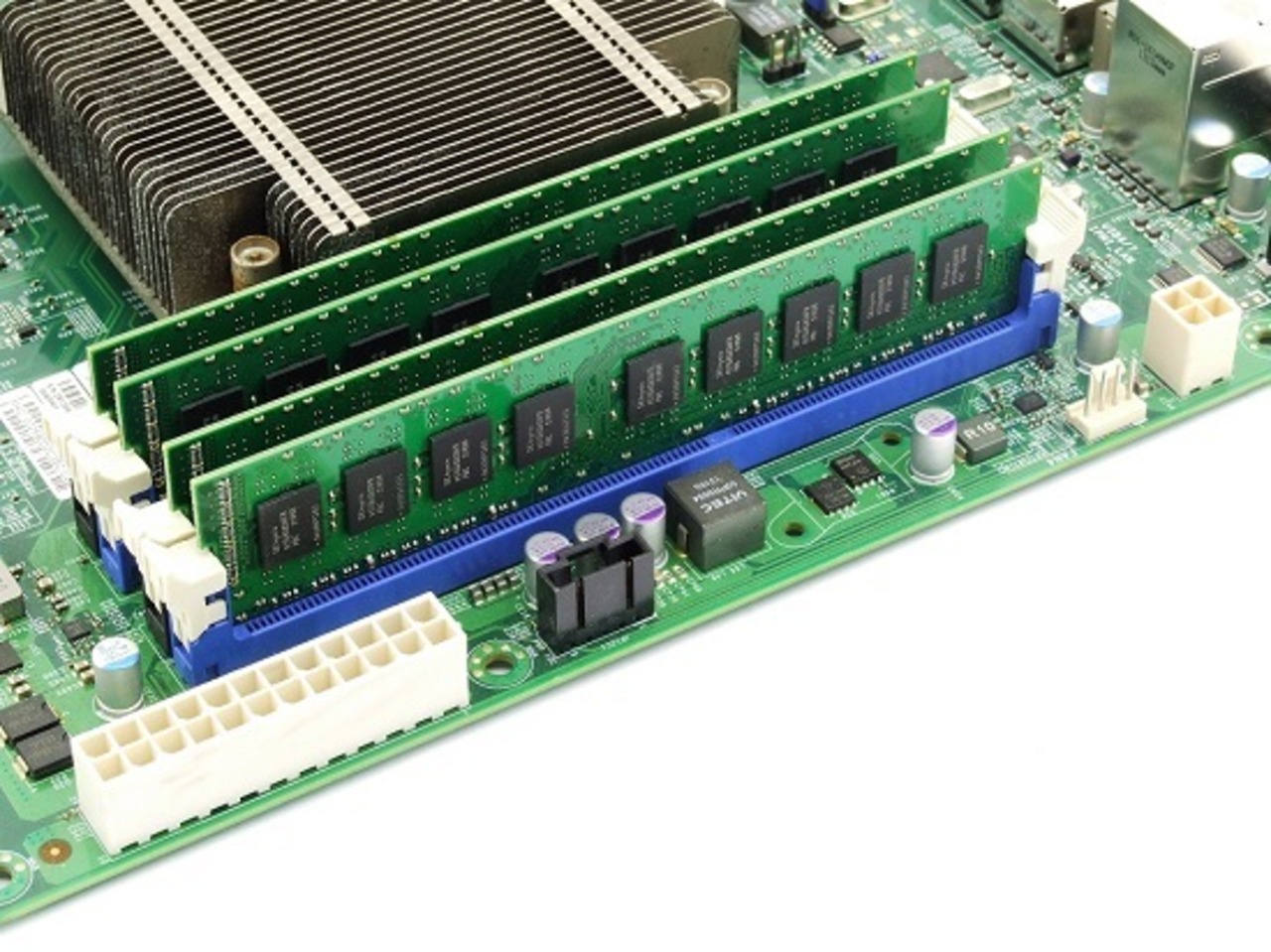

Memory 32GB DDR3 ECC (populated in 4x 8GB)
Onboard Graphics • Aspeed AST2400 BMC

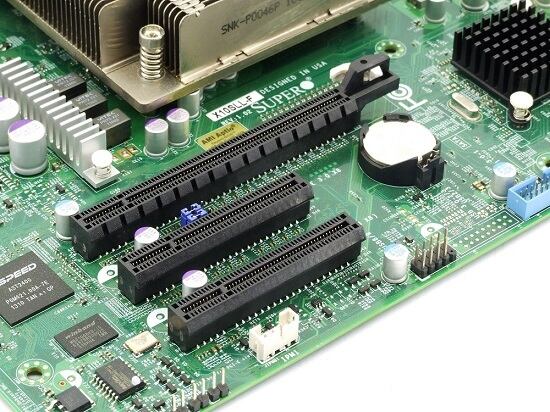

Expansion Slots
• 1x PCI-E 3.0 x8 (in x16 slot),
• 1x PCI-E 3.0 x8
• 1x PCI-E 2.0 x4 (in x8 slot)

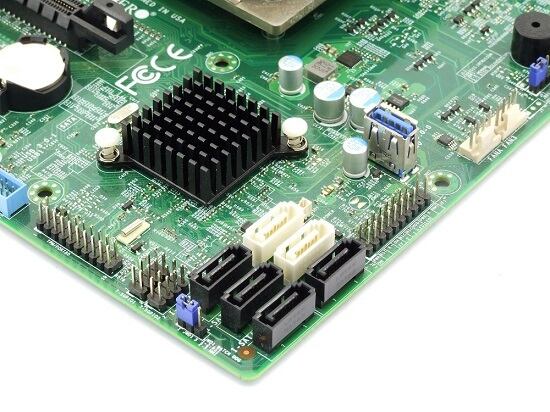

Internal I/O Connectors • 2x SATA3 (6 Gbps) ports;
RAID 0,1
• Intel® C222 controller for 4x SATA2 (3 Gbps) ports; RAID 0,1,5,10
• 1x TCM header
• 2x USB 2.0 header
• 1x USB 3.0 header
• 1x USB 3.0 type A
• 1x COM port header
• Chassis intrusion header
• 24-Pin ATX power connector
• 1x 4-Pin ATX 12V power connector
Backpanel I/O ports • 2x RJ45 Gigabit Ethernet LAN ports
• 1x dedicated IPMI LAN port
• 1x VGA port
• 4x USB 2.0 ports
• 1x COM port
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 with 10/100/1000M bps MAC
Network Intel® Ethernet Controller I210-ATIntel® Ethernet Controller I217LMSupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputRealtek RTL8211E PHY (dedicated IPMI)
Fans connectors
• 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control, Support 3-pin fans (w/o speed control)

部品番号：X10SLL-F EAN：4060787387004 メーカー： Supermicro

状態：目立った傷や汚れなし

発送まで最大で2週間お時間頂きます。
